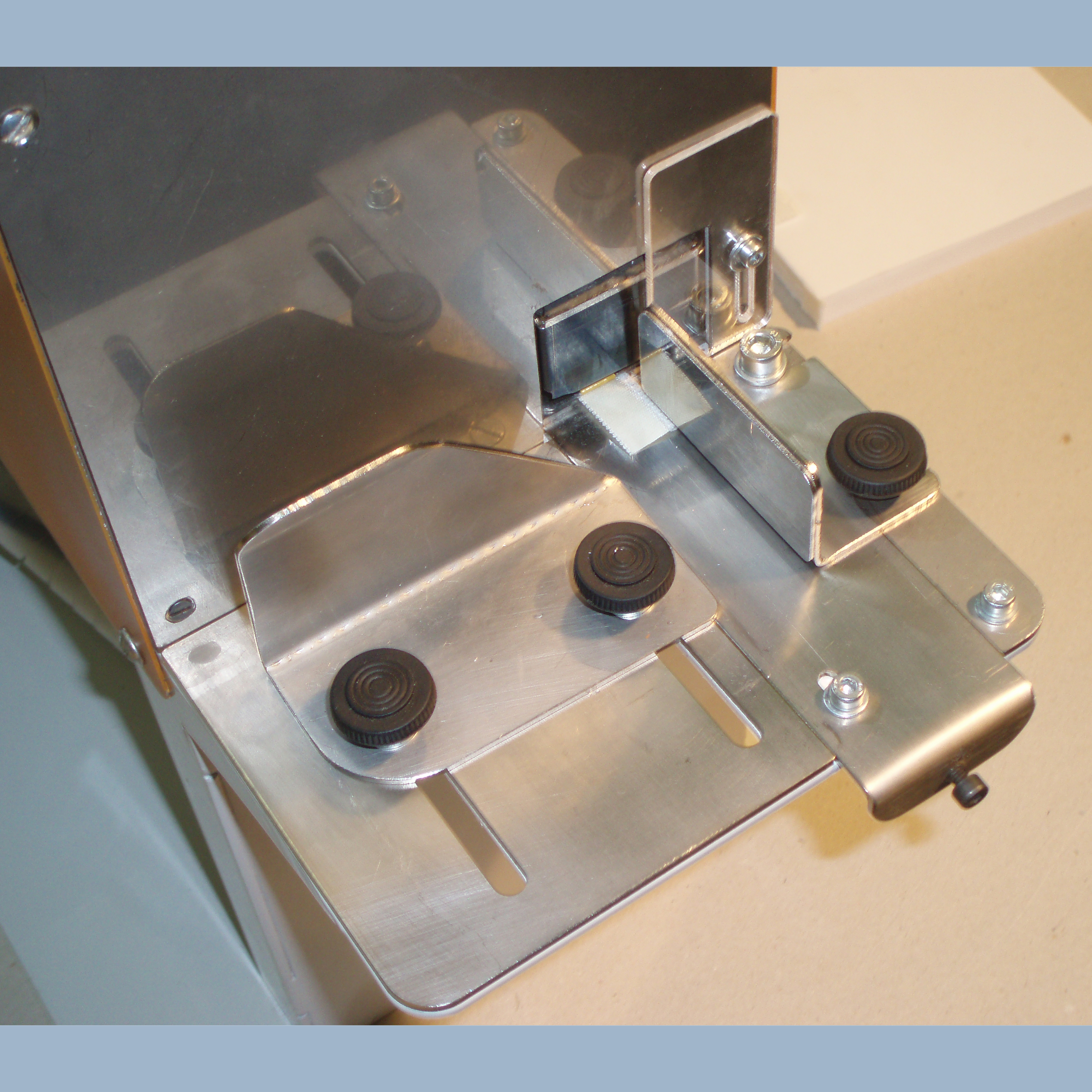

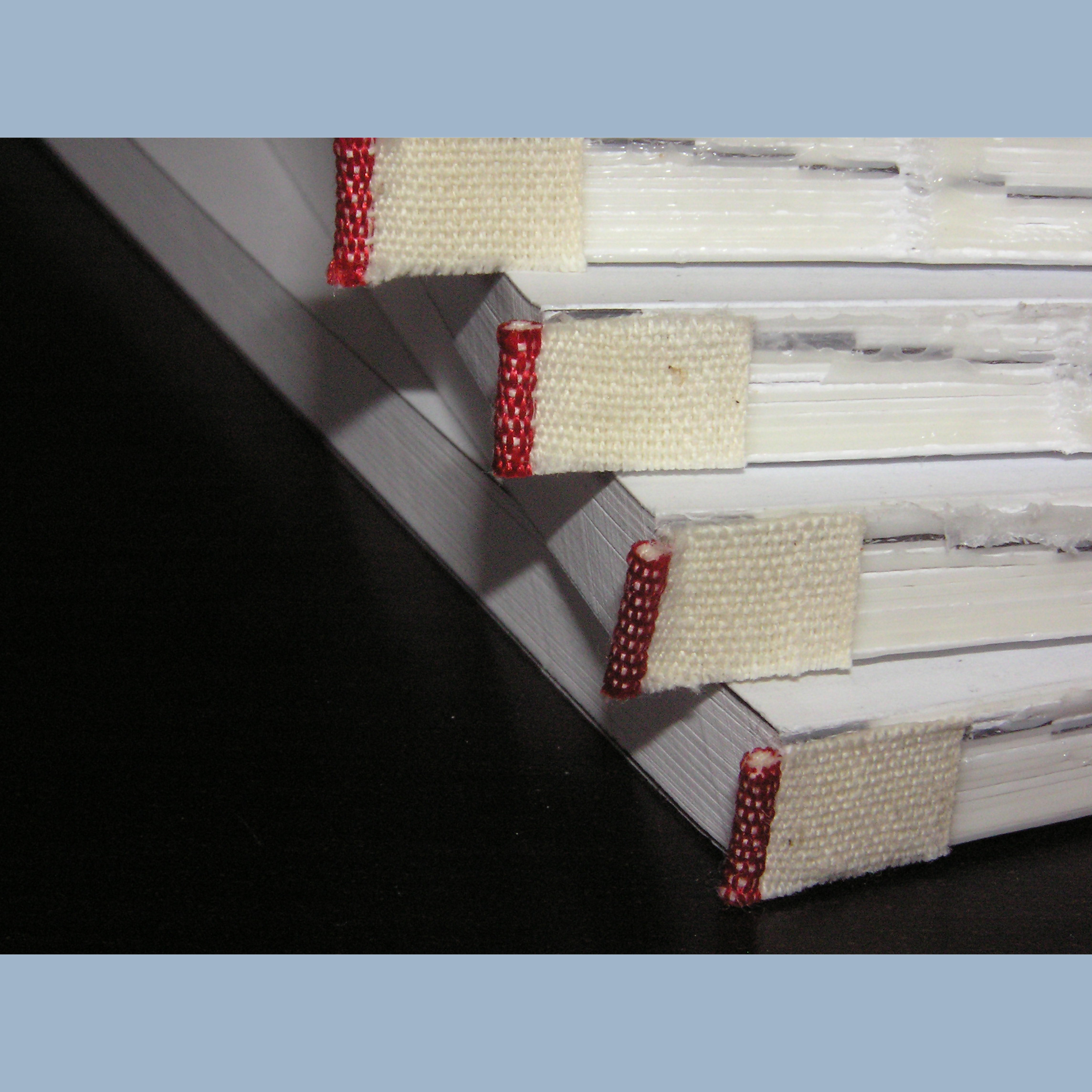

Headbanding machine

Allows sticking the handbands to book blocks.
Significantly accelerates the production rate, where is no production line for hard links availiable.

The desired length of the handband is set on the control panel, then the handband is stuck automatically to the inserted book using a double sided dust tape.
Change of the format takes only 5 seconds!
This solution is highly flexible with the tiny place requirement.

Book block dimensions :	[75 x 100 mm] - [320 x 450 mm]
Book block thickness :	3 - 79 mm
Machine dimensions :	690 x 290 x 420 mm
Weight :	25 kg
Power supply :	230 V, 50 Hz
Air pressure :	6 bar
Maximum performance :	360 Book blocks / hour

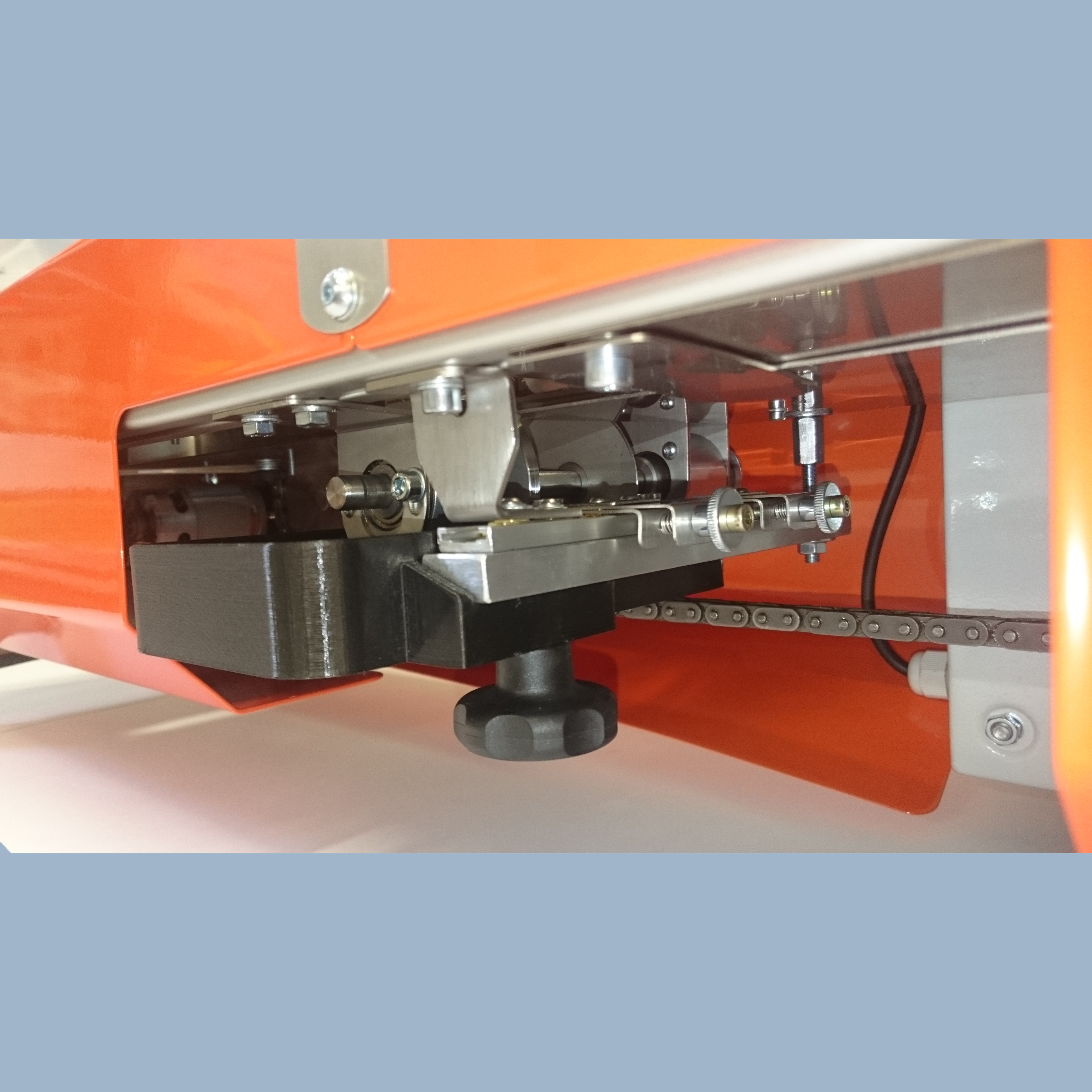

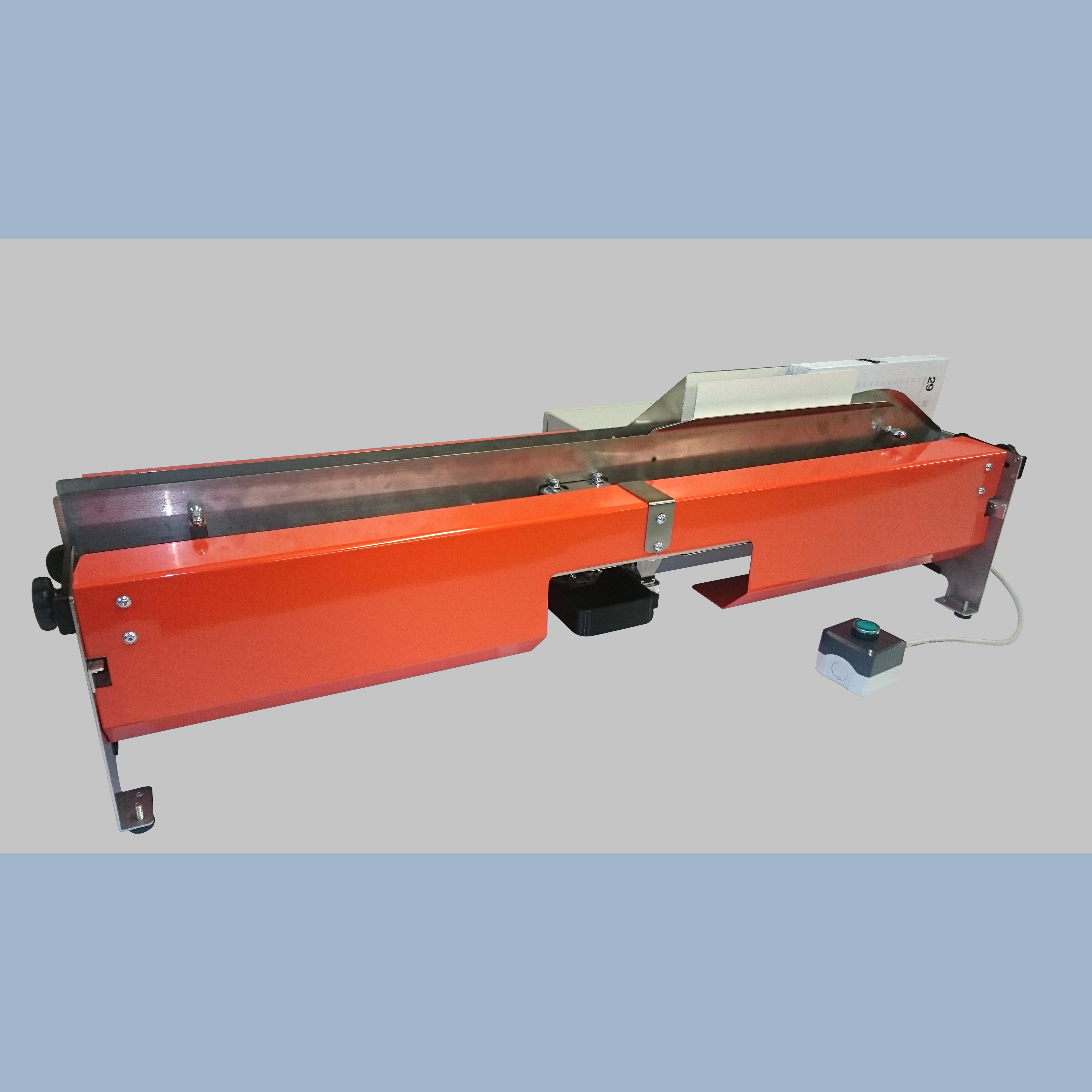

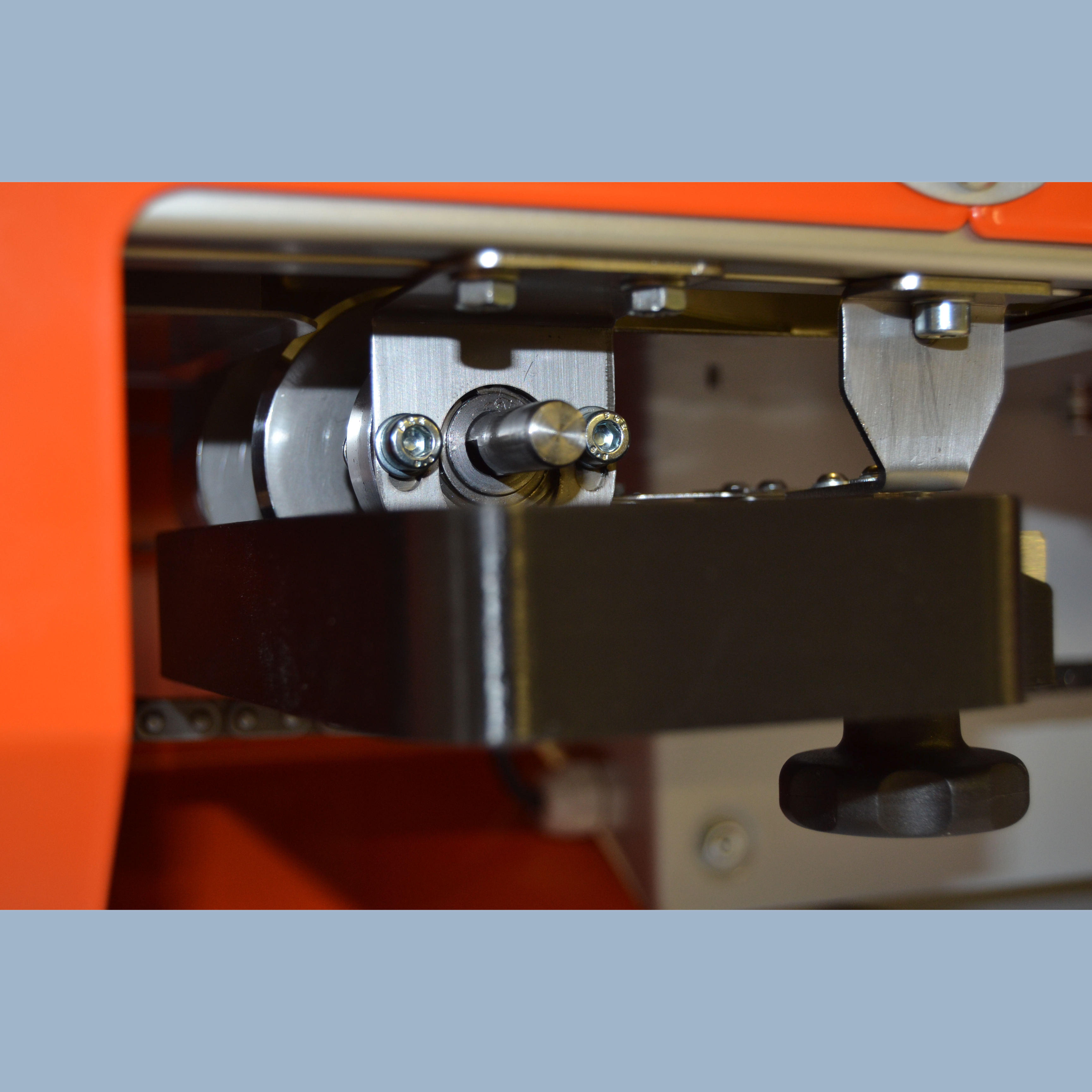

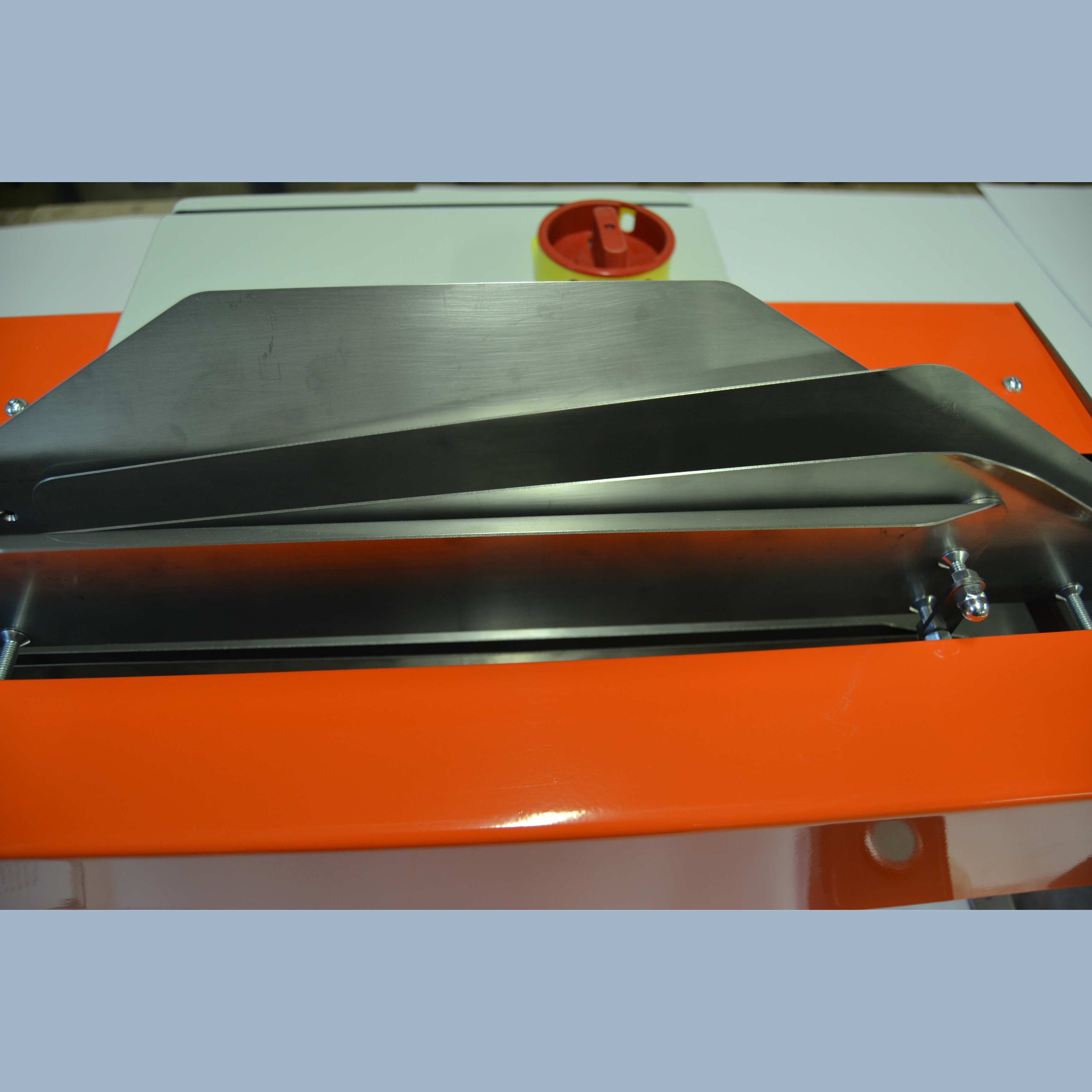

Endpaper gluing machine

This machine adheres endpaper to book block,
increasing productivity without having a fully-automatic line for hardcovers.
This solution is extremely adaptable and requires only a small space.
Changing the book format takes only 5 seconds.

Book block dimensions :	[110 x 150 mm] - [225 x 320 mm]
Spine thickness :	1 - 50 mm
Cycle speed :	max. 360 books/hour
Dimensions :	1540 x 390 x 365 mm
Weight :	27 kg
Power supply :	88~264 VAC, 47~63 Hz

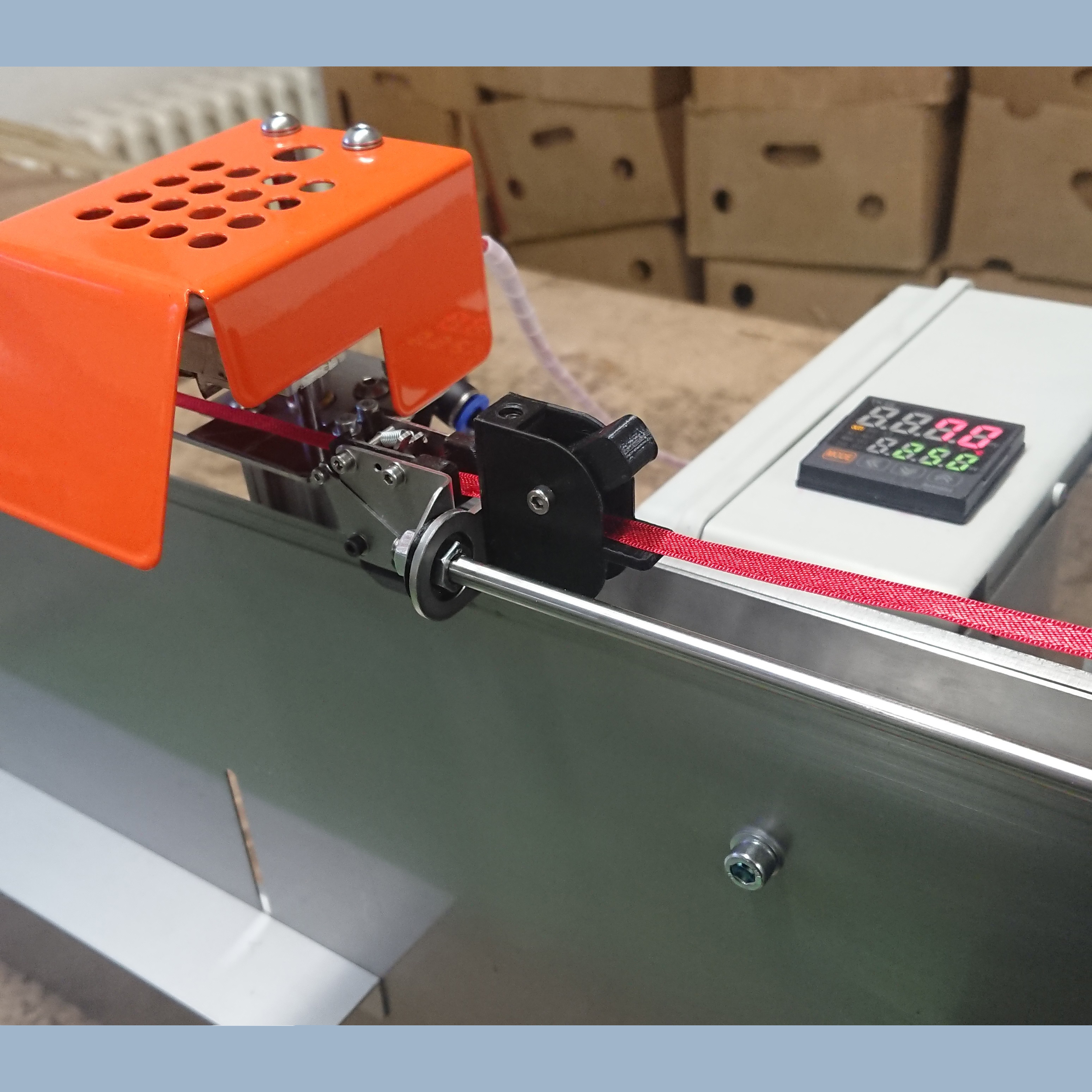

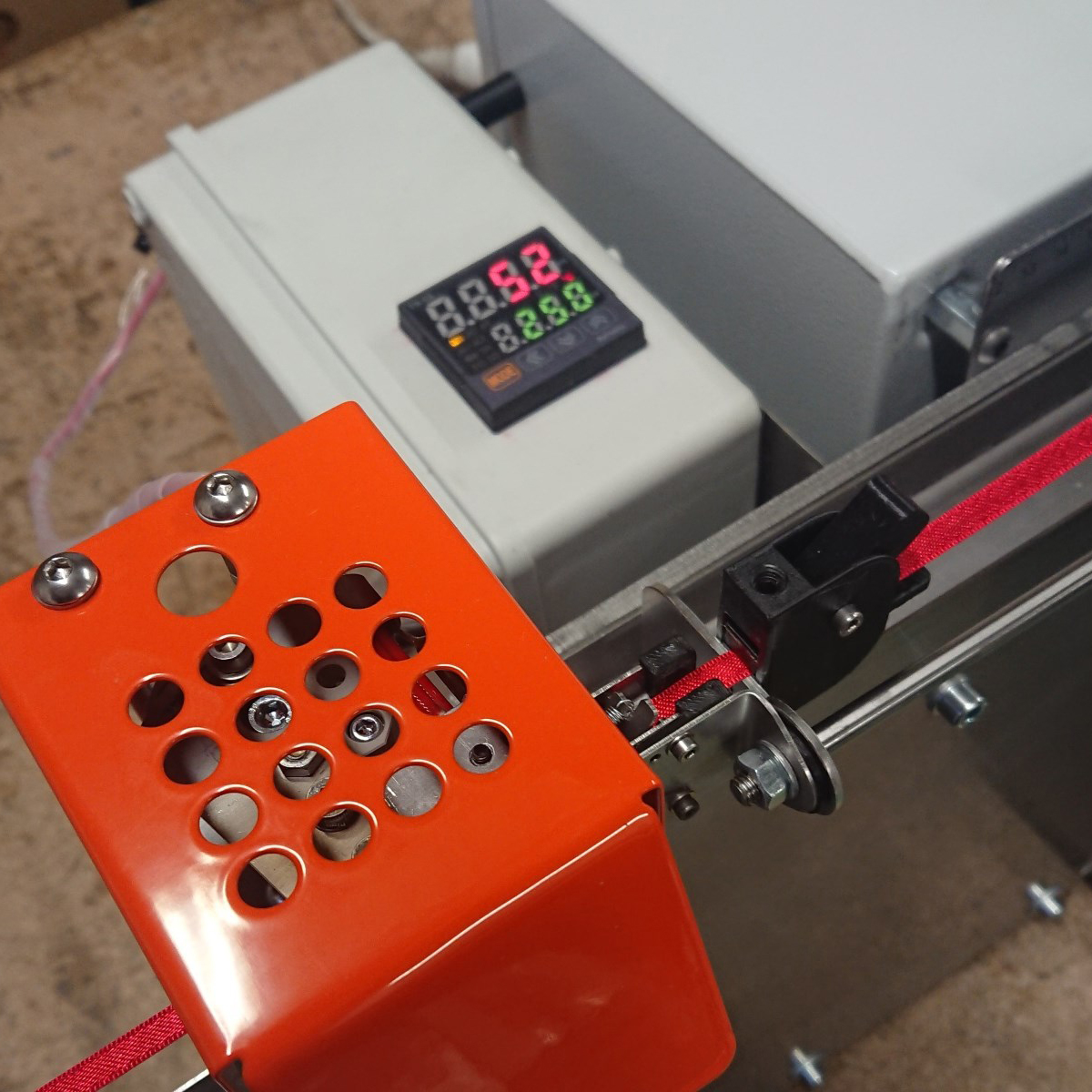

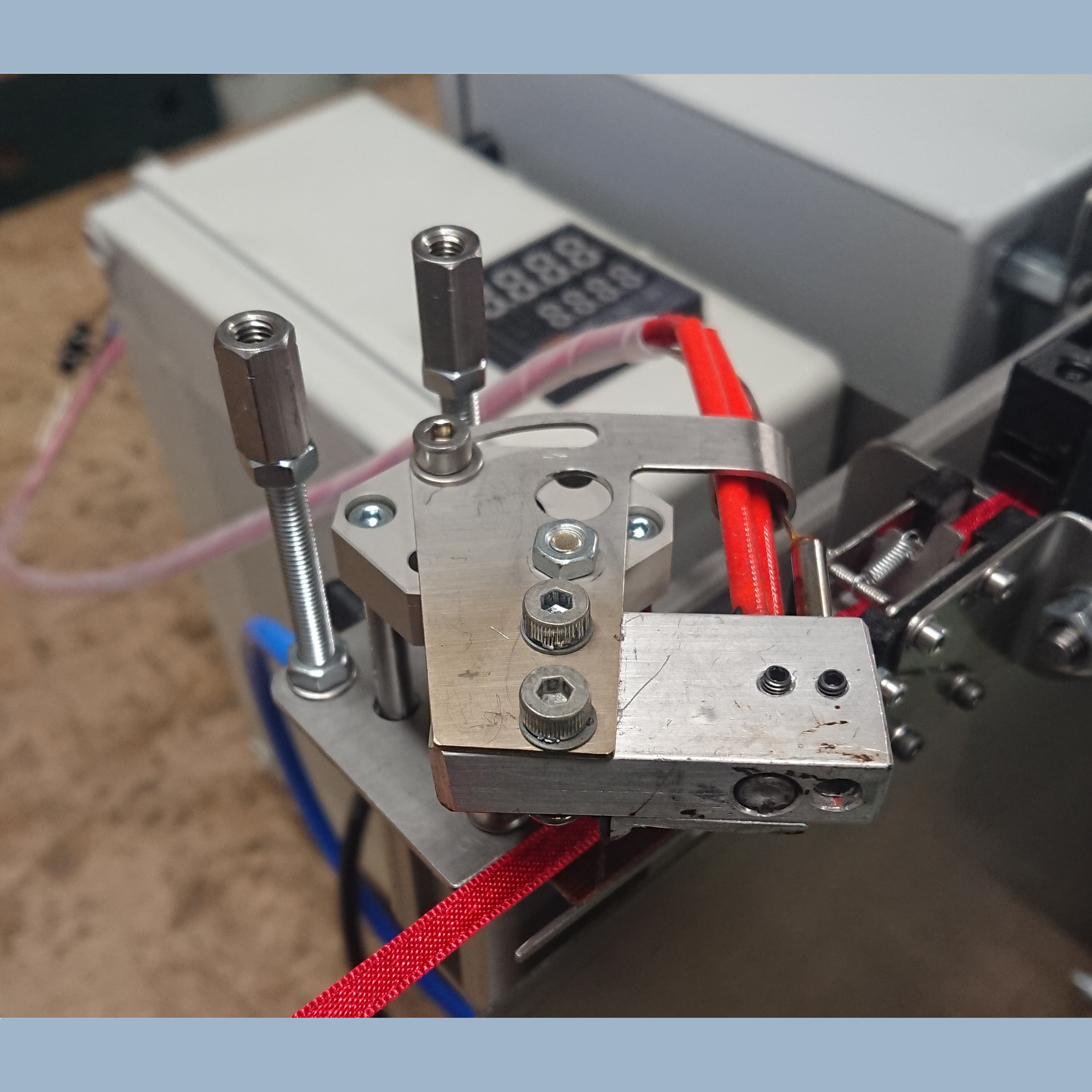

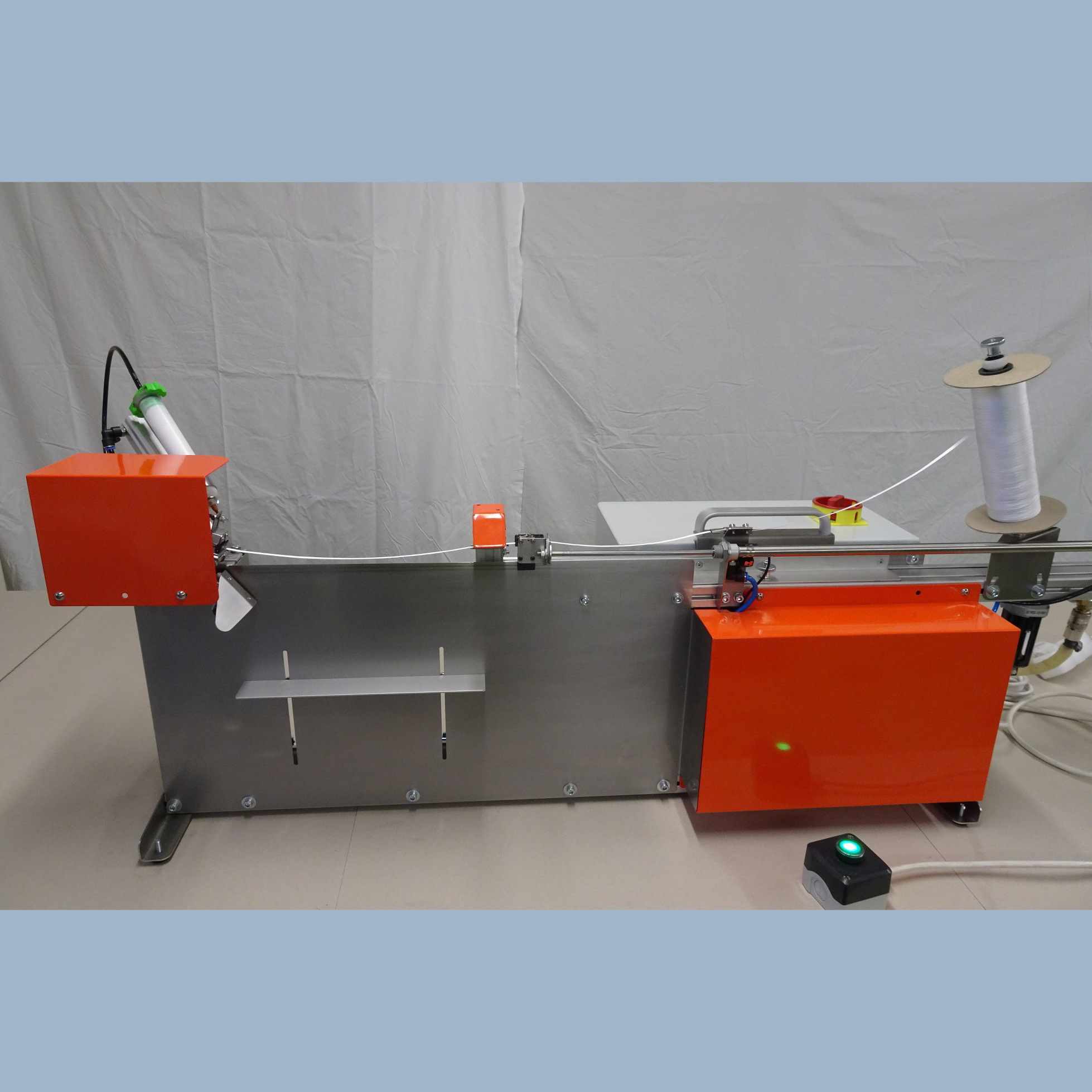

Ribbon Inserting Machine

Book block dimensions :	[70 x 100 mm] - [250 x 350 mm]
Book block min. thickness :	7 mm
Ribbon width :	4 - 10 mm
Ribbon length :	max. 460mm
Cycle speed :	max. 300 cycles/h
Dimensions :	1300 x 380 x 600 mm
Weight :	35 kg
Power supply :	88-264 VAC, 47-63 Hz, 0,05 kW
Compressed air :	6 bar

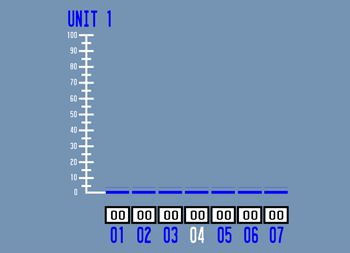

Remote ink contol for press machines with CIP3 connection to prepress
